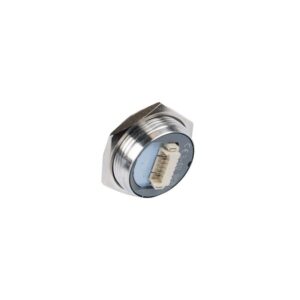

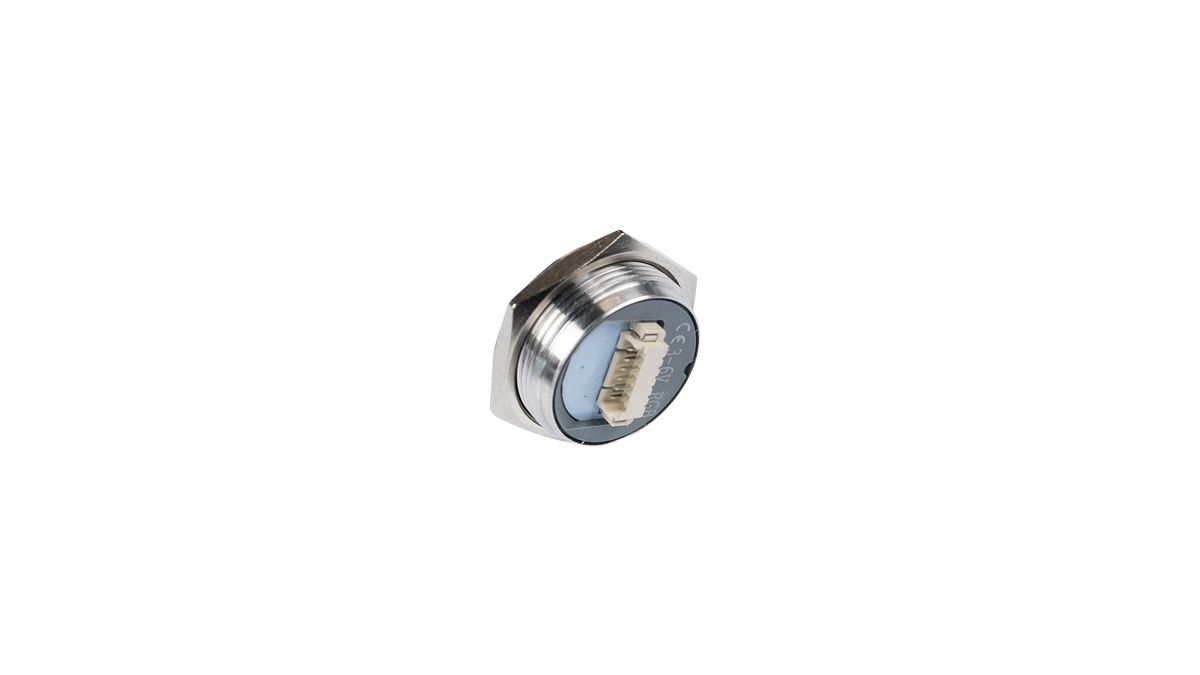

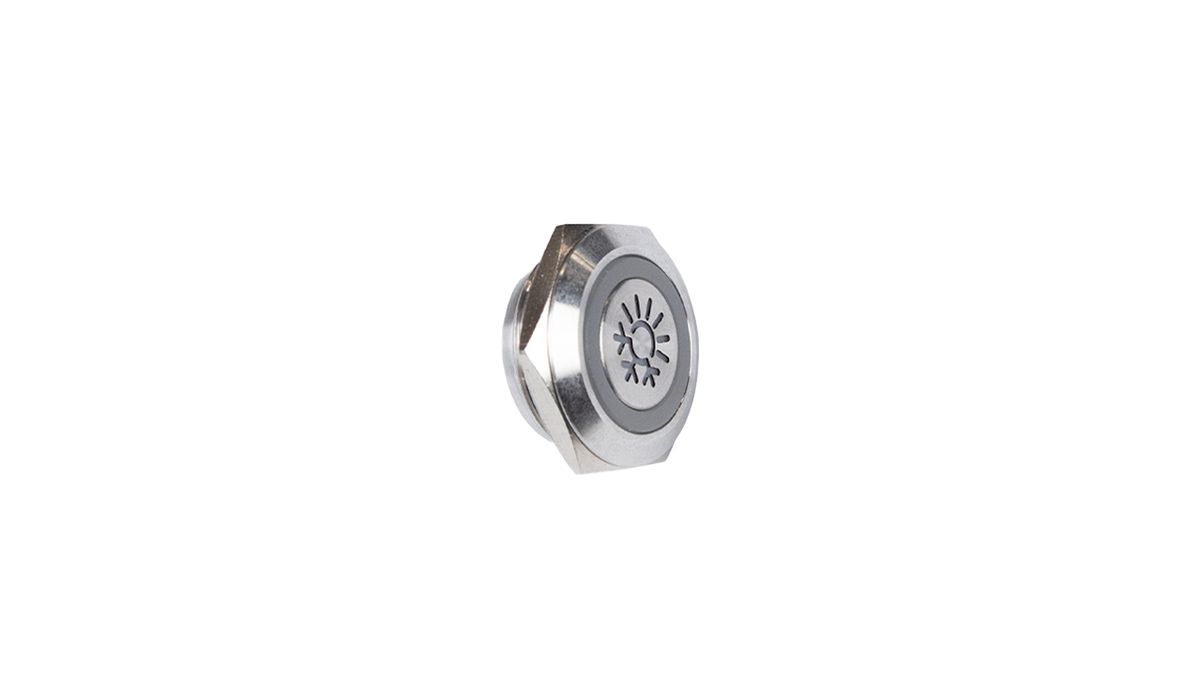

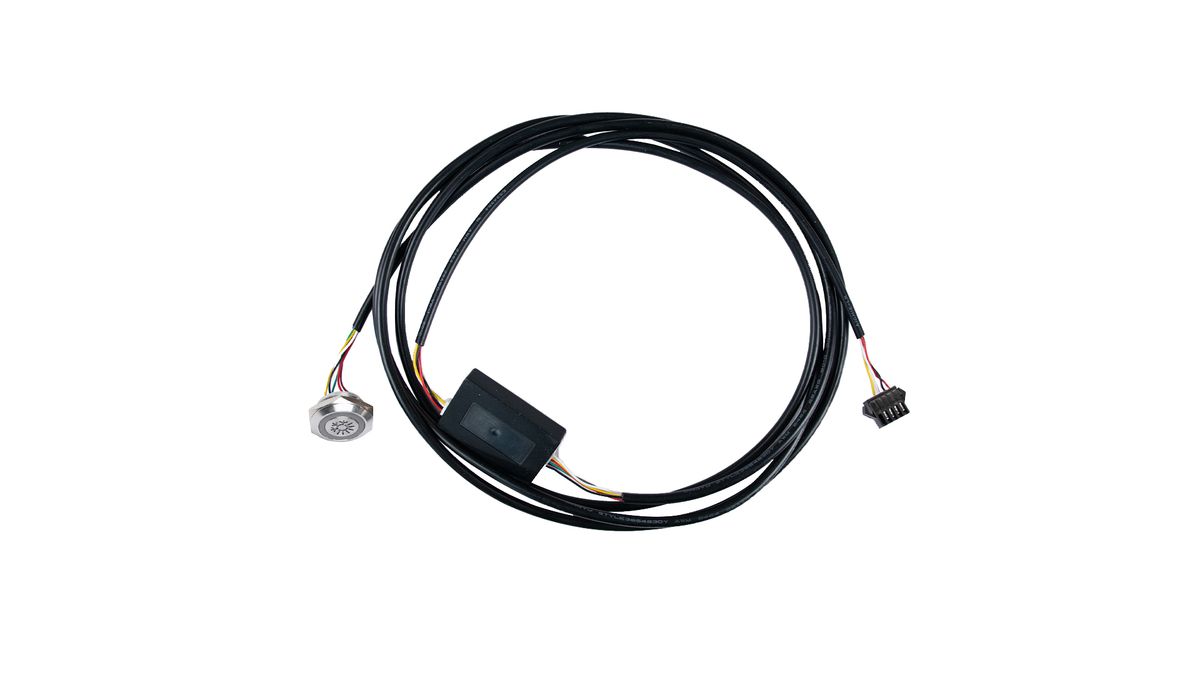

AUTOTERM Push Control er en kompakt og brukervennlig enhet designet for drift av AUTOTERM dieselvarmere med ulike driftsmoduser og funksjoner, avhengig av den spesifikke modellen. Den kommer sammen med en kontrollmodul og ledning for å koble til varmeren.
Den har en IP67-klassespesifikasjon og en kropp i rustfritt stål, og er vanntett og holdbar selv under de tøffeste værforholdene.
Med sin brukervennlige design har det aldri vært enklere å styre din Autoterm-varmere.
Den kan som opsjon kobles sammen med AUTOTERM Comfort Control for å gi dobbel kontroll for et enkelt varmesystem. (krever en egen kabell for kommunikasjon, kommer snart)

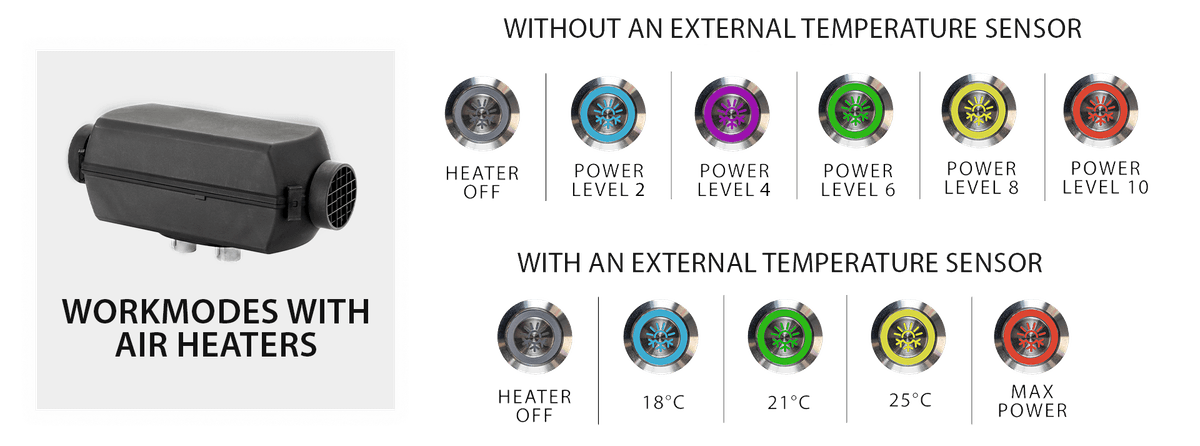

Heating modes for Air heaters
POWER MODE:
The default heating mode for the Push Control button.
TEMPERATURE MODE (Works only with a connected external temperature sensor):
Designed to heat the space to the required temperature;
Heat output decreases as the difference between the desired temperature and the temperature in the space decreases.
* The temperature mode for Air 2D 12/24V and 4D 12/24V heaters in the 6355, 6350, 6260, and 6265 series versions have a new algorithm. In this mode, the heater acts normally by lowering power when it gets near the set temperature. However, if it goes past the temperature setpoint, the heater will turn off and wait until the temperature drops by 3 degrees below the temperature setpoint before starting again.

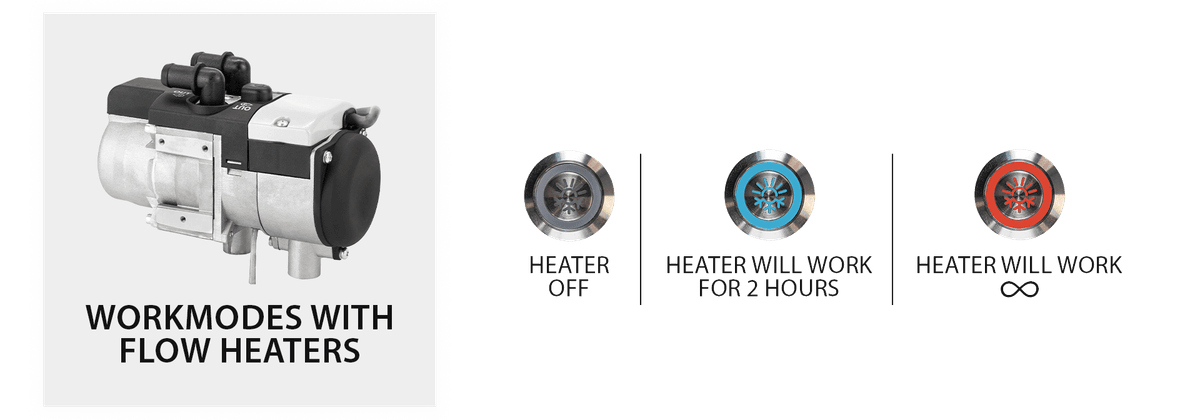

Heating modes for Liquid heaters
PRE-HEATING MODE:
The heater will operate till the certain coolant temperature is reached then shuts off the combustion process. After the temperature of the coolant drops heating will start again.
Temperature sensor
Custom calibrated digital sensor with +/- 1.5 degree offset.

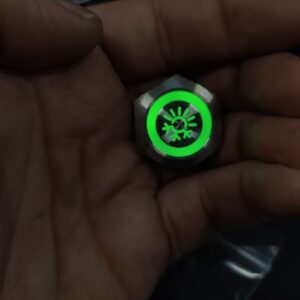

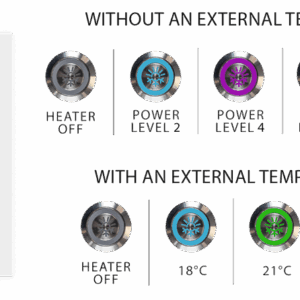

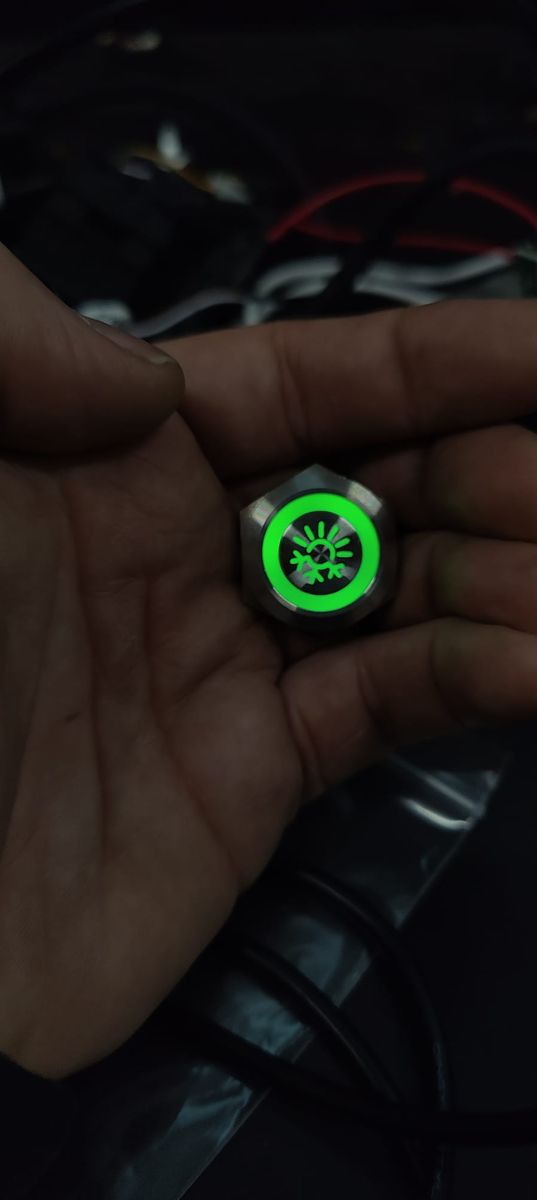

Status display
MIN= Blue
LOW= Purple
MED= Green
High= Yellow
MAX= RED
Blinking RED – error code
Blinking Red/Blue – switching off

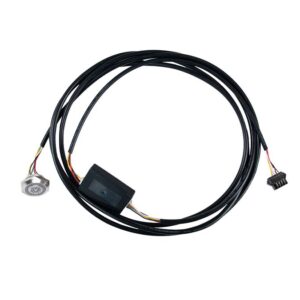

Wiring compatibility
assy.2067 – Wiring for control panel (1.8 m)
assy.2324 – Wiring for control panel (5.0 m)
assy.3298 – Wiring for control panel (7.0 m)
assy.4269 – Extension wiring for control panel (2.6 m)
assy.4366 – Cable wiring for AUTOTERM Flow 5D (12V)
assy.4044 – Cable wiring for AUTOTERM Flow 5D / 5B (12V)
assy.4394 – AUTOTERM Flow 14D wiring harness for control panel (1.8 m)
Maximum allowed cable wiring length with Comfort Control – 10 m
AUTOTERM heater compatibility
AUTOTERM air heaters:
AUTOTERM Air 2D
AUTOTERM Air 4D
AUTOTERM Air 8D
AUTOTERM Air 9D
AUTOTERM liquid heaters:
AUTOTERM Flow 5D / 5B
AUTOTERM Flow 14D
(for verification of compatibility for older heaters sold by AUTOTERM, please contact us at [email protected])

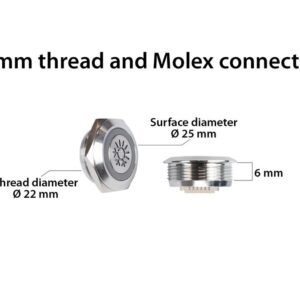

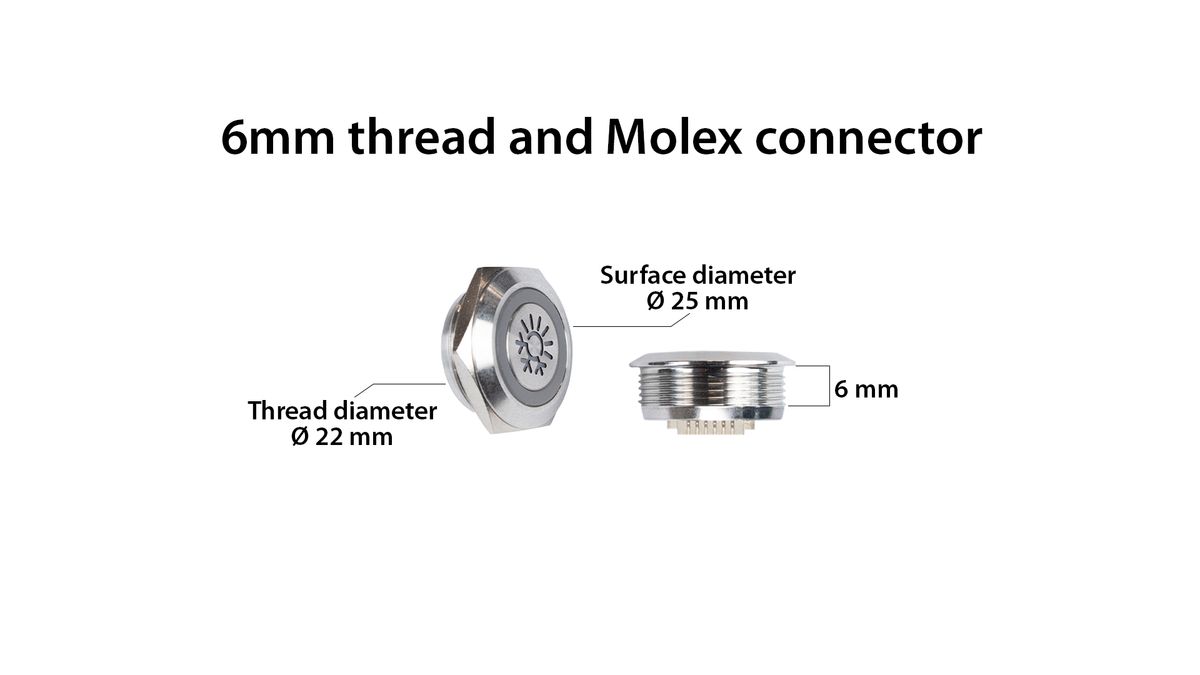

Button surface diameter (mm) 25
| Vekt | 1 kg |
|---|
