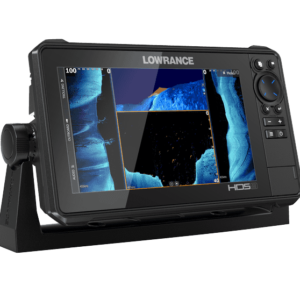

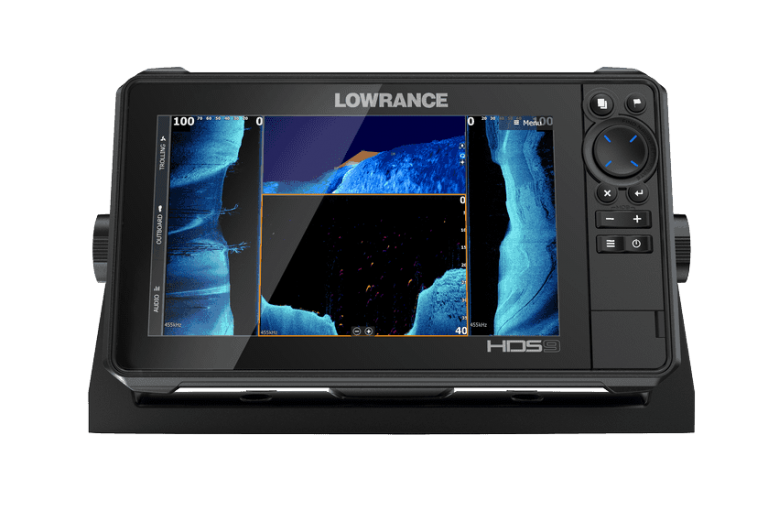

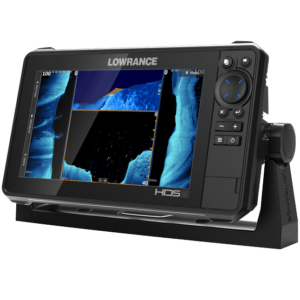

Lowrance HDS Live 9 kombiplotter uten giver

Lowrance HDS LIVE har førsteklasses ytelse og det beste av nyskapende ekkoloddfunksjoner fra Active Imaging, StructureScan 3D med Activ Imaging, FishReveal og LiveSight-sanntidsekkolodd med svingere for montering på eks. MotorGuide Trolling-motorer for forover- eller nedovervisning.

– Alt dette er utformet for å hjelpe deg med å finne mer fisk.!

Lowrance HDS Live levers med 7, 9, 12, og 16 tommer skjerm, og kommer med spennende navigasjonsfunksjoner som C-MAP Easy Routing og Navionics Autoruting.

Bruker får også tilgang til C-MAP Genesis Live-kartlegging, og Navionics SonarChart Live som gjør at bruker selv kan lage konturkart på opp til 0,5m i sanntid.

HDS Live kan kobles mot det aller meste av utstyr fra Lowrance og Simrad
• Active Imaging™ 3-in-1 (CHIRP/Side/Down) sonar ready
• Active Imaging™ 2-in-1 (Side/Down) sonar ready
• StructureScan® 3D with Active Imaging enhancements
• LiveSight™ Real-Time sonar compatible
• Smartphone notifications
• LiveCast™ smartphone integration
• High-performance quad-core processor
• C-MAP Genesis Live onscreen mapping
• FishReveal™ Smart Target View
• High-resolution 12-inch SolarMAX™ HD multi-touch screen with the widest range of viewing angles – viewable even through polarized sunglasses
• Preloaded high-detail US, Australia, New Zealand or worldwide basemap
• C-MAP Easy Routing, Navionics® Autorouting capability
• Dual-Channel CHIRP – dual sonar-range coverage from the same transducer
• Live Network Sonar – cover more water and mark fish targets more clearly from a network of CHIRP sonar transducers
• SiriusXM® Marine Weather and Audio compatible
• Wireless and Bluetooth® connectivity
• Heat Map feature allows anglers to see trends in water temperature changes to quickly target key fishing areas
• Enhanced Surface Clarity lets you see more fish targets near the surface
• Quick Access Control Bar provides one–touch access to system controls
• Touchscreen control of MotorGuide® Xi5 Trolling Motor, Power-Pole® Anchors and Lowrance Outboard Pilot

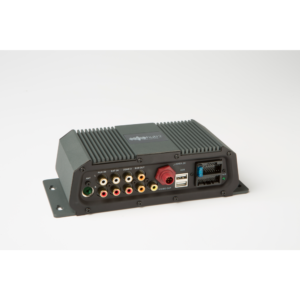

• Radar and SonicHub®2 audio server connectivity
• NMEA 2000® engine support
• Optional mapping upgrades include C-MAP, Navionics® and more

Display
Resolution: 1080 x 720
Brightness: > 1200 nits
Type: 9” IPS
Touch Screen: Multi-Touch
Viewing Angle: 80° top/bottom, 80° left/right

Electrical
Supply Voltage: 12 V DC (10 – 17 V DC min – max)
Power Consumption – MAX: 40.02 W (2.9 A at 13.8 V DC)
Recommended Fuse: 4 A

Environmental
Operating Temp Range: -15°C to +55°C (5°F to 131°F)
Storage Temp Range: -20°C to +60°C (4°F to 140°F)
Waterproof Rating: IPX6 and IPX7

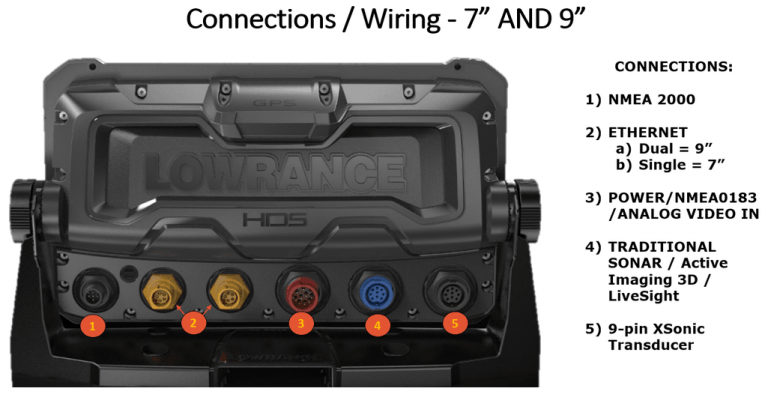

Connections
NMEA 2000: 1 port (Micro-C)
NMEA 0183: 1 port (In Power Cable)
Ethernet: 2 ports
HDMI Video In: N/A
Analog Video In: 1 port (optional cable)
USB: N/A
Card Slots: 2 slots microSD
Wireless: Built-in 802.11 b/g/n
Bluetooth 4.0 with support for Bluetooth Classic Bluetooth

OBS: for å bruke Activetarget trenges active target blackbbox og tilpasset sounder
